UV Photodetector Module
PDUVA series UV photoelectric detection module，Detection wavelength range 220-370 nm, Bandwidth 100M, Designed for space UV light detection，At the same time, it can be equipped with FC optical connector, SMA output, low noise and high gain.
overview
The PDUV series is a high-speed, amplified UV spatially coupled photodetector，Designed for a variety of spatial UV signal test and measurement applications。The device integrates a high-performance gallium nitride (GaN)-based UV detection diode，It has the characteristics of high sensitivity, low dark current, strong resistance to visible light and infrared interference. The housing has a 30mm cage optic interface that allows the focusing lens to be connected，F(xiàn)ree-space optocoupling is possible and an optional FC flange is available.
Features
- Low noise and high gain
- Visible light blindness
- All metal shell, excellent shielding performance
Application
- UV LED monitoring
- UV radar measurements
- Excimer laser measurement
- Quantum applications
- Detection of day blindness
- UV curing monitoring
Document download
Specifications
| PDUVA-10M | PDUVB-100M | PDUVC-50M | |
|---|---|---|---|
| Material | AIGaN | GaN | AIGaN |
| Wavelength range | 220-420nm | 220-370nm | 240-280nm |
| Optical Input | Free-Space | Free-Space | Free-Space |
| Detector Size | 1mm2 | 0.2mm2 | 1mm2 |
| Responsivity | 0.2A/W @ 385nm | 0.18A/W @ 355nm | 0.12A/W @ 275nm |
| Bandwidth | DC-10MHz | DC-100MHz | DC-50MHz |
| Rise Time | 36ns | 3.5ns | 7ns |
| Max Gain@HiZ | 2.2x103V/W | 2x103V/W | 1.3x103V/W |
| Minimum optical power | -21.4dBm (7.3uw) | -14.4dBm (36uw) | -16.1dBm (24.6uw) |
| Saturated optical power | 2.6dBm (1.8mw) | 3dBm (2mw) | 4.9dBm (3.1mw) |
| Noise voltage | <16mV | <36mV | <16mV |
| Maximum output amplitude@50Ω load | 4V | 4V | 4V |
| Operating voltage | 12VDC ±10% | 12VDC ±10% | 12VDC ±10% |
| Operating current | <100mA | <100mA | <100mA |
| Output connector | SMA | SMA | SMA |
| Output impedance | 50Ω | 50Ω | 50Ω |
| Output coupling mode | DC | DC | DC |
| Operating temperature | -20~65℃ | -20~65℃ | -20~65℃ |
| Storage temperature | -40~85℃ | -40~85℃ | -40~85℃ |
| Dimensions | 60mm x 50mm x 32mm（Length x width x thickness） | 60mm x 50mm x 32mm（Length x width x thickness） | 60mm x 50mm x 32mm（Length x width x thickness） |

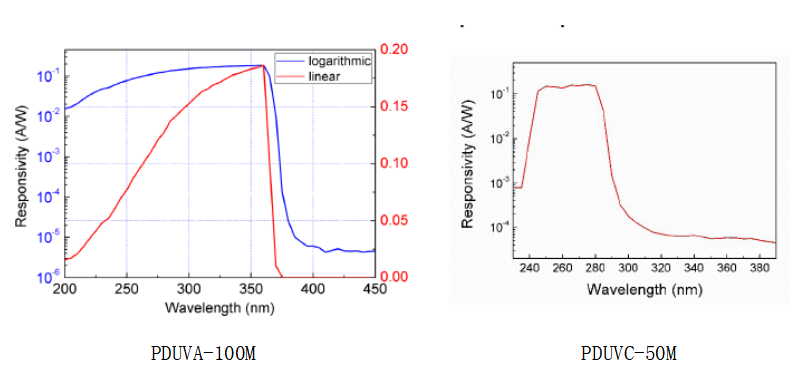

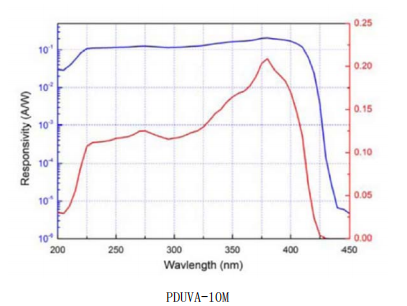

Response curve
Dimensions
